5V 300A Lithium-ion Batteries Performance Test Battery Cell Testing Equipment

Brand Name : Sinuo

Model Number : SN552-5V300A

Certification : Calibration Certificate (Cost Additional)

Place of Origin : China

MOQ : 1

Price : Customized

Payment Terms : T/T

Supply Ability : 1 sets/month

Delivery Time : 45 days

Packaging Details : Other

Resolution : 1000mS

Stability : ±0.1%FS

Maximum output current : ±300A

Minimum output current : ±600mA

Charging voltage range : 0V-5V

Discharge voltage range : 1.3V-5V

Discharge response time : ≤ 20ms

Charging response time : ≤ 20ms

Contact Now

5V 300A Lithium-ion Batteries Performance Test Battery Cell Testing Equipment

Equipment Overview

The equipment is mainly composed of upper computer, intermediate computer, DC/AC module, DC/DC module, lower computer, data acquisition and processing system, etc., and can

real-time collection of voltage, current, capacity, energy and other information of each single battery. Optional support for battery temperature data collection. The collected data is stored in a specially designed database and provides various data statistics, analysis and report generation functions.

System architecture diagram, as shown below:

5V 300A Lithium-ion Batteries Performance Test Battery Cell Testing Equipment

Technical Parameters

Model SN552-5V300A
Number of main channels 1 channel/set
Main channel test abort condition Time, voltage, current, capacity, etc.

Main channel voltage

 Charging voltage range 0V-5V
Discharge voltage range 1.3V-5V (1.3V is the device port voltage)
Accuracy ±(0.05%RD+0.05%FS)
Resolution 0.1mV

Main channel current

 Maximum output current ±300A
Minimum output current ±600mA
Accuracy ±(0.05%RD+0.05%FS)
Resolution 0.1mA
Current start response time

≤20ms (≤10ms optional)
Time Resolution 1000mS

Power

 Output power Single channel continuous operation maximum power 1200W
Stability ±0.1%FS
The highest efficiency of charging and discharging 75%
Feed network Harmonic ≤3%
Power factor ≥0.99

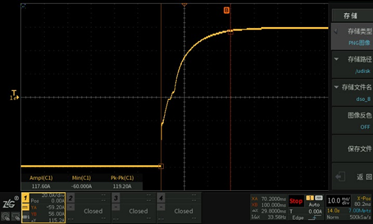

Charging response time ≤ 20ms Discharge response time ≤ 20ms
5V 300A Lithium-ion Batteries Performance Test Battery Cell Testing Equipment 5V 300A Lithium-ion Batteries Performance Test Battery Cell Testing Equipment
Charging switching and discharging switching time ≤ 40ms Discharge switching charge switching time ≤ 40ms
5V 300A Lithium-ion Batteries Performance Test Battery Cell Testing Equipment 5V 300A Lithium-ion Batteries Performance Test Battery Cell Testing Equipment

CC-CV current curve

5V 300A Lithium-ion Batteries Performance Test Battery Cell Testing Equipment5V 300A Lithium-ion Batteries Performance Test Battery Cell Testing Equipment
Details

5V 300A Lithium-ion Batteries Performance Test Battery Cell Testing Equipment5V 300A Lithium-ion Batteries Performance Test Battery Cell Testing Equipment
